Polyurethane foam lubrication wheels
The lubricating sprocket has an additional plastic sprocket on the periphery of the polyurethane foam, which allows the polyurethane foam to rotate with the chain. This approach provides adequate and effective continuous lubrication of the open gears and chain, and prevents excessive lubrication that could contaminate the environment.
Detailed Description

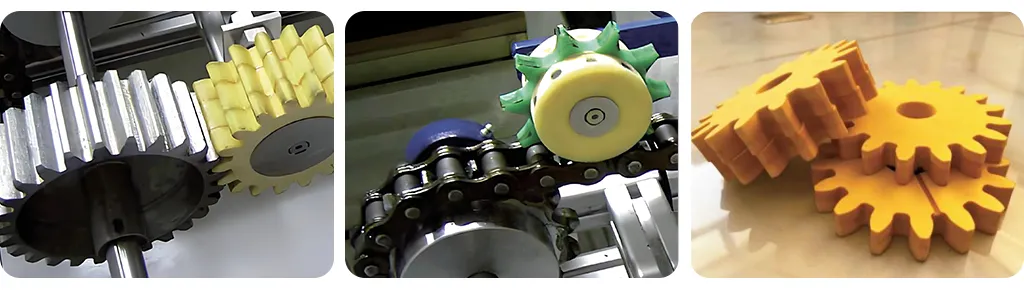

The lubrication gear consists of a hollow shaft and a perforated polyurethane foam. During operation, lubricant flows through the inlet of the shaft to the radial outlet at the other end, providing a constant supply of lubricant grease to the polyurethane foam.
The lubricating sprocket has an additional plastic sprocket on the periphery of the polyurethane foam, which allows the polyurethane foam to rotate with the chain. This approach provides adequate and effective continuous lubrication of the open gears and chain, and prevents excessive lubrication that could contaminate the environment.
SIMPLUBE Provides standard metric lubricated gears in widths from 20-120mm (module M2-M30). For special requirements, we can also customize non-standard products according to the working conditions.
SIMPLUBE offers a wide range of single and double row lubricated sprockets in accordance with ISO standards, and for other special chain lubrication we can also customize special lubricated sprockets upon request.
SIMPLUBE lubricated gears and lubricated sprockets are the best choice for lubricating gears and chains where cleanliness is critical.
Technical parameters
| Material | Polyurethane foam Open cell density |
| Operating temperature range | -30°C ~ +150°C |
| Maximum surface speed | 5 meters/second |
| Applicable lubricant type | lubricating oil and grease |

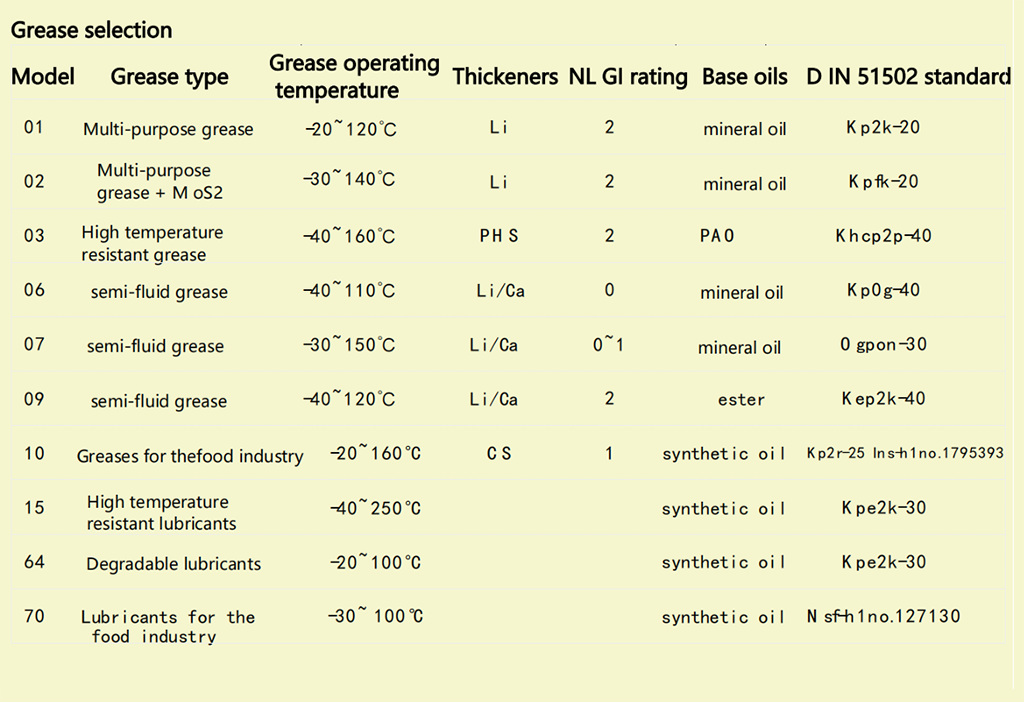

Lubricating grease selection
Example--------SP250-01
Product Family--------Autogreaser SP Series
Grease filler capacity--------Automatic grease filler 250ml
Grease type--------Multi-purpose grease code "01"
* Optionally available with or without oil and grease
Depending on the application, we offer a wide range of high-quality grease and lubricant fillers, as well as grease-free fillers for special applications.
