OD-mounted flange facing machine HZ002-610L
8-jaw fixation, featuring reliable installation;
High precision crossed roller bearing ensure the overall strength and rigidity of the equipment;
A 360-degree rotating cutter holder makes it possible to process various special flanges;
The spiral gear guarantees surface smoothness in machining;
The horizontal linear guideway adopts a preload design, which can eliminate the slight deformation caused by the machining load, so as to ensure the machining accuracy.
The product is upgraded from six series aluminum alloy to seven series aviation aluminum alloy, which makes the product more solid and wear-resistant and greatly improves the service life.
Detailed Description
Product parameters
| Product name | OD-mounted flange facing machine |
| Brand |  |
| Place of origin | China |
| Product specifications | HZ002-610L |
| Processing range | 150-610mm |
| Installation range | 130-570mm |
| Equipment speed | 0-42rpm |
| Power unit | Pneumatic |
| Air pressure | 0.63Mpa |
| Air consumption | 1. 0m3 /min |
| Tool holder stroke | 40mm |
| Feed speed | IN:0.45mm/r |
| OUT:0.125mm/r | |
| Main machine weight | 23kg |
| Total weight | 76kg |
| Packing box size | 702*480*485mm |

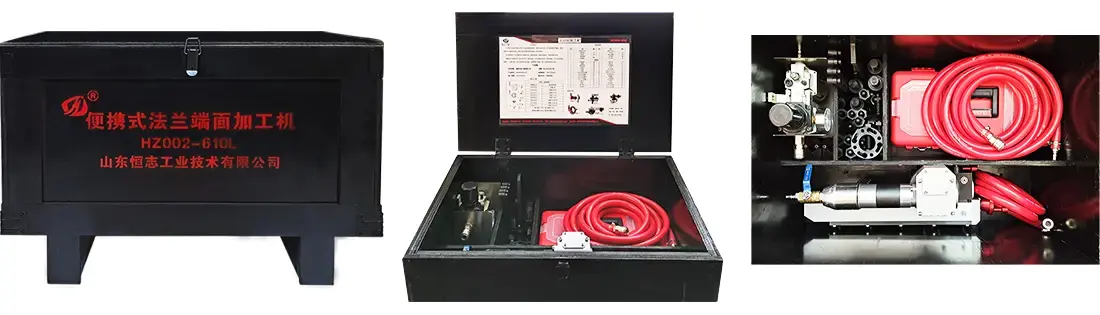

Advantages of the equipment box:
1. Lightweight and strong: the box is lightweight, more convenient for handling, and strong and durable, can withstand a certain degree of shock and vibration;
2. Beautiful appearance: suitable for domestic or export packaging of various goods;
3. Strong cushioning performance: able to protect the internal items;
4. Corrosion resistance, good moisture absorption: able to maintain stability in a humid environment, to protect the internal items from damage;
5. Environmental protection can be recycled: can be repeatedly recycled, in line with environmental standards.
Optional accessories
| No. | Name | Amount | Note |
| 1 | Magnetic meters | 1 block | Magnetic Holder |
Advantages of magnetic meters:  | |||
