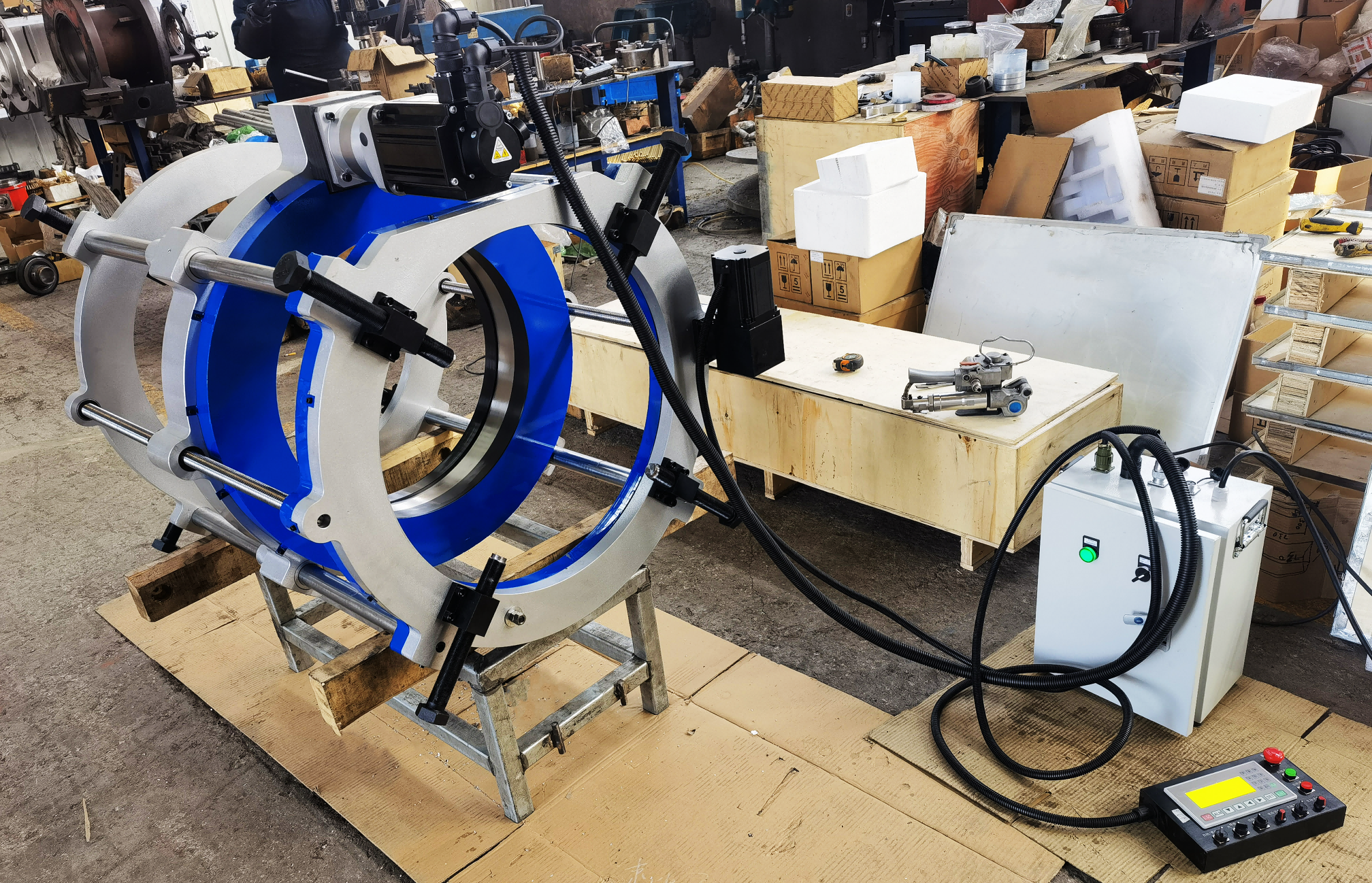

TX-ZD800 Shaft End Lathe
It has the advantages of light structure, flexible assembly, fast turning speed and good machining accuracy;
Widely used in large wind power, shipbuilding, chemical industry and other industries large size shaft end turning processing, for customers to solve the trouble and problems that can not be processed on site;
According to the processing data required by the customer, the shaft head can be customized.
Widely used in large wind power, shipbuilding, chemical industry and other industries large size shaft end turning processing, for customers to solve the trouble and problems that can not be processed on site;
According to the processing data required by the customer, the shaft head can be customized.
Detailed Description
Product parameters
| Product name | Shaft End Lathe |
| Place of origin | China |
| Product specifications | TX-ZD800 |
| Range of machining axis diameters | Φ100mm-Φ350mm（Customizable） |
| Main drive method | Servomotor |
| Rated power of main drive motor | 3KW |
| Rated speed of main drive motor | 3000 r/min |
| Feeding method | Automation |
| Automatic feed gear | Stepless gearbox |
| Feed stroke | 800mm |
| Single side draft | ≥2mm |
| Roundness | ≤0.02 |
| Machined Surface Roughness | Ra3.2 |
| Mending function | 80-600mm |
| Operating Methods | Digital display |
| Weight of the fuselage | 90kg |
