ID-mounted flange facing machine HZ003-350E
It adopts the modular design, characterized by a compact overall structure, high stability, and easy installation and storage on site;
Driving the gearbox to execute a 90° rotation effectively conserves installation height space;
It adopts high-precision main swivel bearings to guarantee machining accuracy;
The radial feed is automatic, allowing for the adjustment of feed direction and speed, while also being equipped with a manual rapid feed;
The cutter holder is rotatable, facilitating the machining of seal grooves, etc.;
The shell of the main structure and the tool arm are made of aluminum alloy, and the material is upgraded from six-series aluminum alloy to seven-series aviation aluminum alloy, which makes the product more solid and wear-resistant, and the service life is greatly improved.
Driving the gearbox to execute a 90° rotation effectively conserves installation height space;
It adopts high-precision main swivel bearings to guarantee machining accuracy;
The radial feed is automatic, allowing for the adjustment of feed direction and speed, while also being equipped with a manual rapid feed;
The cutter holder is rotatable, facilitating the machining of seal grooves, etc.;
The shell of the main structure and the tool arm are made of aluminum alloy, and the material is upgraded from six-series aluminum alloy to seven-series aviation aluminum alloy, which makes the product more solid and wear-resistant, and the service life is greatly improved.
Detailed Description
Product parameters
| Product name | ID-mounted flange facing machine |
| Brand |  |
| Place of origin | China |
| Product specifications | HZ003-350E |
| Processing range | 0-350mm |
| Installation range | 50-524mm |
| Equipment speed | 0-45rpm stepless speed regulation |
| Power unit | Pneumatic/electric |
| Tool holder stroke | 40mm |
| Feed gear | F/C |
| Knife speed | F:0.125mm/rev |
| C:0.5mm/rev | |
| Air motor power | 1.1HP |
| Air consumption | 1m³/min |
| Main machine weight | 52kg |
| Total weight | shall prevail in kind |
| Packing box size | shall prevail in kind |
Additional accessories
| No. | Name | Amount | Note |
| 1 | Magnetic meters | 1 block | Magnetic Holder |
Advantages of magnetic meters:  | |||

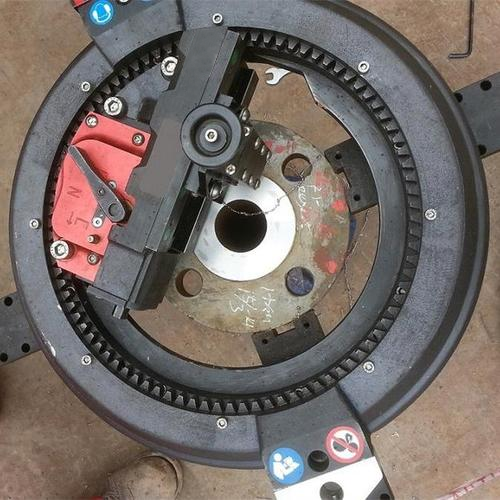

Operation site
