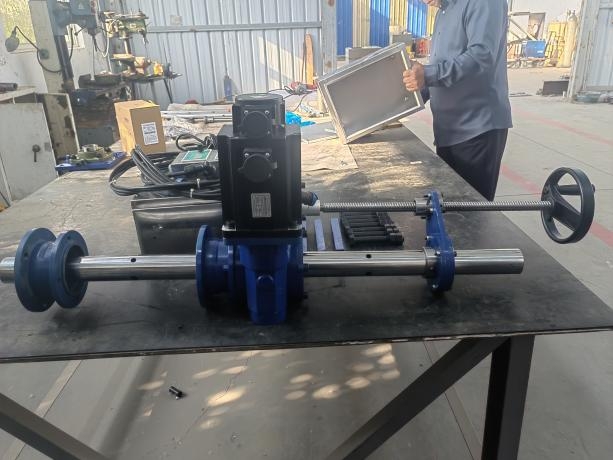

Model 50 Boring Machine
Digital control intelligent boring and welding machine, rapid calibration, quick installation;
Strong power;
Boring bar is made of alloy steel by strict scientific process, high strength, high hardness, high precision, good toughness, the surface of the hard chrome-plated, non-rust, good wear resistance;
Spindle box (power head) can be installed in any position of the boring bar, fixed simply and conveniently;
Bearing support configuration of imported double-row Spherical cylindrical roller bearings, high precision, rigidity, feed automatically can be manually adjusted, and can be disassembled, easy to install and dismantle.
Strong power;
Boring bar is made of alloy steel by strict scientific process, high strength, high hardness, high precision, good toughness, the surface of the hard chrome-plated, non-rust, good wear resistance;
Spindle box (power head) can be installed in any position of the boring bar, fixed simply and conveniently;
Bearing support configuration of imported double-row Spherical cylindrical roller bearings, high precision, rigidity, feed automatically can be manually adjusted, and can be disassembled, easy to install and dismantle.
Detailed Description
Product parameters
| Product name | Model 50 Boring Machine |
| Place of origin | China |
| Product specifications | TX-TH50 |
| Depth of cut on one side | ≥6mm |
| Bore repair welding diameter range | ¢55mm-¢270mm |
| Boring standard boring bar size | ¢50*1500mm |
| Welding rod standard | ¢30mmx1200mm |
| Main drive type | Electric Motor |
| Rated power of main drive motor | 2.6KW |
| Rated speed of main drive motor | 3000r |
| Feed mode | Manual / Electric two modes |
| Feed stroke | 430mm |
| Single side draft | ≥6mm |
| Machining hole roundness | ≤ 0.02 |
| Roughness of machined surface | Ra3.2 |
