Model 90 Boring Machine
Equipment calibration quickly, accurately, advanced structure, quick installation, strong power;
Boring bar adopts bearing steel, high strength, high hardness, high precision, good toughness, the surface of hard chrome plating, no rust, good wear resistance;
Spindle box (power head) can be installed in any position of the boring bar, fixed simply and conveniently;
Bearing support configuration of the imported double-row self-aligning cylindrical roller bearings, high precision, high rigidity;
End face tool holder can be before and after the automatic knife, adjustable feed, and can be dismantled for easy installation and dismantling. The feed amount can be adjusted and disassembled, which is easy to install and dismantle.
Boring bar adopts bearing steel, high strength, high hardness, high precision, good toughness, the surface of hard chrome plating, no rust, good wear resistance;
Spindle box (power head) can be installed in any position of the boring bar, fixed simply and conveniently;
Bearing support configuration of the imported double-row self-aligning cylindrical roller bearings, high precision, high rigidity;
End face tool holder can be before and after the automatic knife, adjustable feed, and can be dismantled for easy installation and dismantling. The feed amount can be adjusted and disassembled, which is easy to install and dismantle.
Detailed Description
Product parameters
| Product name | Model 90 Boring Machine |
| Place of origin | China |
| Product specifications | TXT-90 |
| Depth of cut on one side | ≥ 4mm |
| Boring diameter range | 100mm-800mm |
| Boring span | ≤6 m |

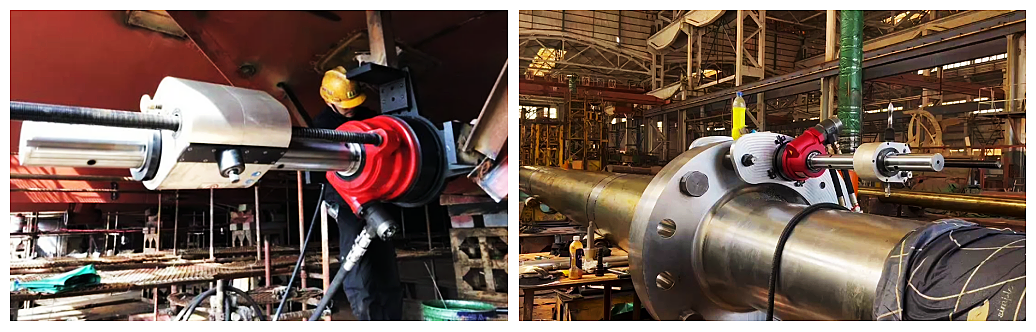

Operation site
