OD-mounted flange facing machine HZ002-7000L
Modular design that is suitable for on-site installation and operation;
8-jaw fixation, featuring reliable installation;
High precision crossed roller bearing ensure the overall strength and rigidity of the equipment;
A 360-degree rotating cutter holder makes it possible to process various special flanges;
The spiral gear guarantees surface smoothness in machining;
The horizontal linear guideway adopts a preload design, which can eliminate the slight deformation caused by the machining load, so as to ensure the machining accuracy.
The product is upgraded from six series aluminum alloy to seven series aviation aluminum alloy, which makes the product more solid and wear-resistant and greatly improves the service life.
8-jaw fixation, featuring reliable installation;
High precision crossed roller bearing ensure the overall strength and rigidity of the equipment;
A 360-degree rotating cutter holder makes it possible to process various special flanges;
The spiral gear guarantees surface smoothness in machining;
The horizontal linear guideway adopts a preload design, which can eliminate the slight deformation caused by the machining load, so as to ensure the machining accuracy.
The product is upgraded from six series aluminum alloy to seven series aviation aluminum alloy, which makes the product more solid and wear-resistant and greatly improves the service life.
Detailed Description
Product parameters
| Product name | OD-mounted flange facing machine |
| Brand |  |
| Place of origin | China |
| Product specifications | HZ002-7000L |
| Processing range | 3000-7000mm |
| Installation range | 2900-6500mm |
| Equipment speed | 0.25rpm stepless speed regulation |
| Power unit | Pneumatic/electric/hydraulic |
| Radial feed stroke | 1000mm |
| Minimum rotary diameter | 5000mm |
| Maximum depth of bore | 150mm |
| Maximum depth of cut | 3mm |
| Machined Surface Roughness | ≤Ra 1.6μm |
| Main machine weight | Shall prevail in kind |
| Total weight | Shall prevail in kind |
| Packing box size | Shall prevail in kind |
Optional accessories
| No. | Name | Amount | Note |
| 1 | Magnetic meters | 1 block | Magnetic Holder |
Advantages of magnetic meters:  | |||

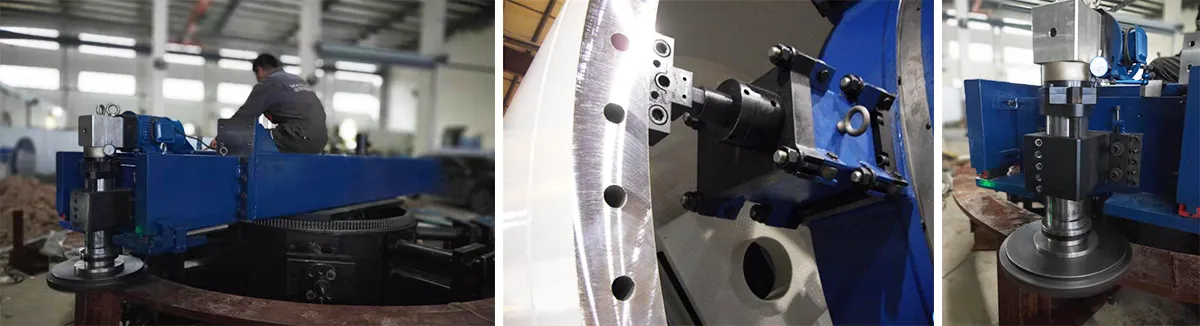

Operation site
